A Typical Workflow of Virtual Private Cloud ( Amazon VPC) in an Organization

A Typical Workflow of Virtual Private Cloud ( Amazon VPC) in an Organization

AWS Series (Part-4)

Visakha Sandhya Griddaluru's photo
Visakha Sandhya Griddaluru
·

6 min read

Table of contents

Introduction

A Virtual Private Cloud (VPC) is a virtual network that can be created and configured in cloud computing environments like Amazon Web Services (AWS). It lets you set up a section of the AWS cloud where you can deploy and manage your cloud resources in a logically isolated environment and makes it easily customizable. Consider it as a cloud-based private data center.

Key Benefits

  • Isolation: With Amazon VPC, you can keep your cloud resources separate from other users and the public internet. Your private network's boundaries are entirely up to you.

  • Customization: Every aspect of the network configuration, such as the subnets, routing, IP address range, and security settings, is entirely under your control. With this customization, you can create a network that is tailored to your own needs.

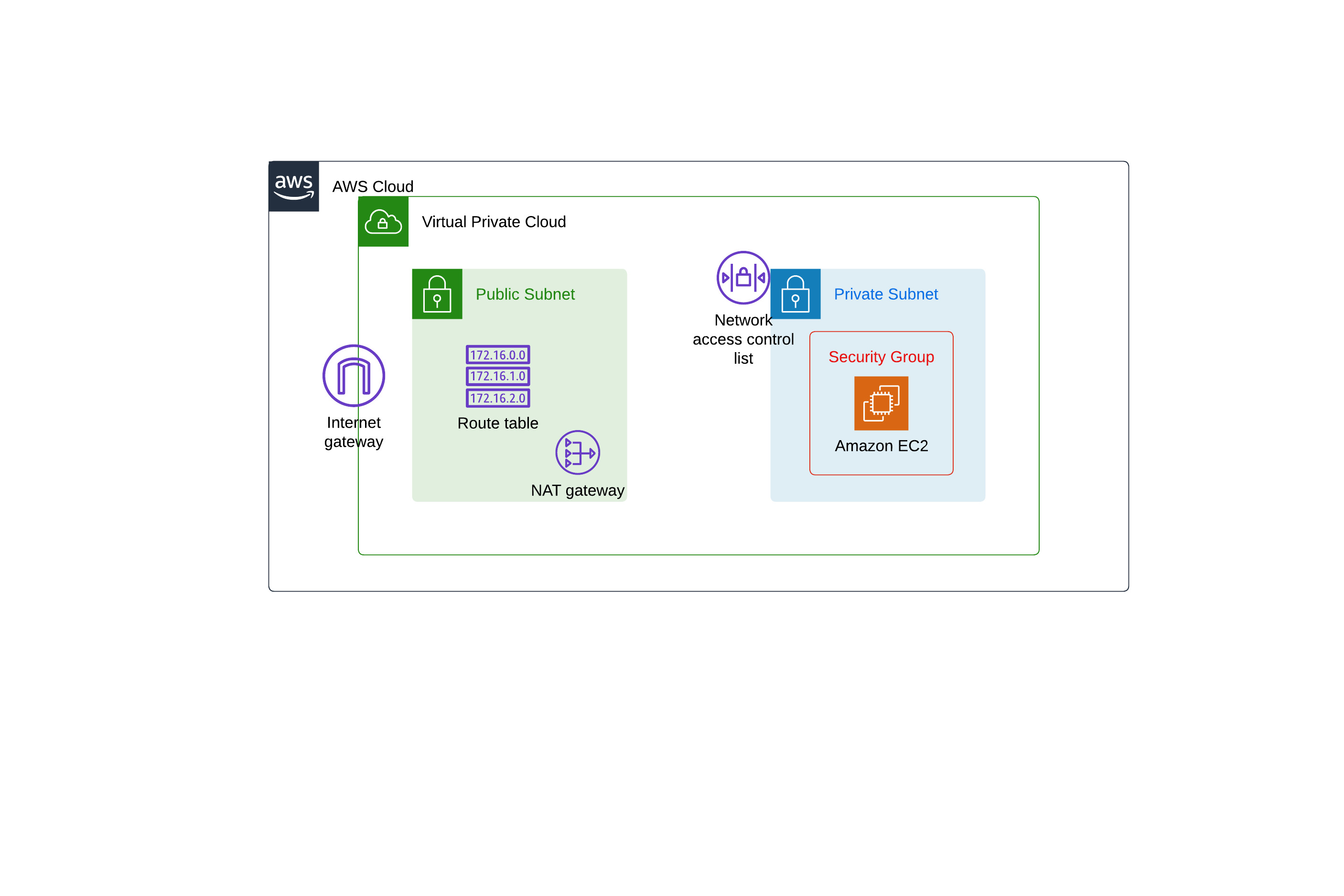

Main Components of VPC

  1. Subnets: Subnets are divisions in a VPC. Subnets can be made both public and private. Web servers and other resources are usually placed in public subnets, which also have internet access. On the other hand, private subnets are isolated from the internet and usually have internal services or database servers placed within them. Using the private subnets for database servers is a security best practice to protect sensitive data, and control access to the database.

  2. IP Address: To identify and address devices on a network, IP addresses are essential. They are employed to make sure that data gets to its intended location and to route data packets between devices. Each device connected to a computer network that makes use of the Internet Protocol for communication is given an IP address, also known as an Internet Protocol address.

  3. Route Tables: In order to efficiently route network traffic, whether it is in a cloud-based environment, over the internet, or within a local area network (LAN), route tables are necessary. Through the use of destination addresses and metrics, they assist devices in making well-informed decisions about packet forwarding, resulting in dependable and effective data transmission.

  4. Security Groups and Network Access Control Lists (NACLs): Security Groups are used to regulate traffic at the instance level. They are stateful and enable return traffic for connections that are initiated. Whereas, subnet-level traffic control is accomplished through the use of stateless Network Access Control Lists (NACLs), which necessitate distinct rules for inbound and outbound traffic. NACLs are assessed prior to traffic reaching the instances, adding an extra degree of protection.

  5. Internet Gateway: An internet gateway is an essential part of a cloud-based virtual private cloud (VPC) that allows communication between its resources and the public internet. In addition to providing the required routing and gatekeeping functions for security and control, it is crucial for hosting services that are accessible to the public and guarantee connectivity with outside clients.

  6. NAT Gateway: To enable outbound internet connectivity from private subnets in a VPC while retaining a degree of security and control over the communication, NAT gateways are an essential part of cloud networking. They are especially helpful for private resources that need to be online to perform tasks like patch management, software updates, and external service integration.

  7. Elastic IP Address: Elastic IP addresses are a useful feature that allows you to assign a fixed and consistent public IP address to your cloud resources. They are especially helpful in situations where you have to keep your cloud services' public-facing address consistent. They also guarantee that your resources are affordable, portable, and readily available online.

  8. VPC Peering: Amazon Web Services (AWS) provides a networking feature called virtual private cloud (VPC) peering that lets you link VPCs to each other and enable private and secure communication between resources situated in different VPCs.

VPC Workflow in an Organization

An organization's Virtual Private Cloud (VPC) workflow typically consists of a set of procedures and best practices for configuring, maintaining, and improving the VPC in order to support the cloud infrastructure and services provided by the organization. This is a typical workflow:

  1. Planning Phase: Determine the needs of the organization with regard to security, IP addressing, and network topology. Specify the VPC's structure, including the regions and availability zones that will be used. Determine which subnets are required for which uses (public, private, database, application, etc.). Plan the security model, taking into account the usage of Network Access Control Lists (NACLs) and security groups.

  2. Create the VPC: Create the VPC using the specified parameters, including the CIDR block, in the cloud provider's console. Configure the public and private subnets' route tables.

  3. Configure Subnets: Create subnets inside the VPC and assign them to the relevant route tables. To provide redundancy, make sure the subnets are distributed among availability zones in the right way.

  4. Security and Access Control: Set up security groups and NACLs to manage resource traffic, both inbound and outbound. To manage user and resource access, put IAM (Identity and Access Management) policies into place. For secure instance access, set up key pairs.

  5. Internet Connectivity: In order to enable public subnets to connect to the internet, create an Internet Gateway (IGW). To securely access the internet, set up NAT Gateways or instances and Elastic IPs (EIPs) for private subnets.

  6. Deploy Resources: Start and create EC2 Instances, set up Lambda functions, RDS databases, and other resources inside the VPC. Connect these resources to the proper subnets, route tables, and security groups.

  7. Load Balancing and Auto Scaling: To distribute traffic among instances across several availability zones, use load balancers, such as network load balancers or application load balancers. In order to automatically modify resource capacity in response to demand, implement auto-scaling groups. Review and optimize resource costs on a regular basis.

  8. Monitoring: Use third-party or AWS provider tools like CloudWatch, CloudTrail, etc., to implement monitoring and logging. Configure CloudWatch alarms to track resource performance and security. Set up dashboards as necessary to monitor and respond to performance and availability issues.

  9. Compliance and Security Audits: Make sure your VPC configuration is in line with organizational and industry standards by conducting regular audits. Perform penetration tests and security assessments.

  10. Documentation and Training: Maintain thorough records of all configuration changes made to the VPC over time. Provide training to the development and IT teams on VPC best practices.

  11. Review and Update: To make sure your VPC configuration is in line with the changing needs of your company and industry best practices, review and update it on a regular basis.

Conclusion

The main procedures for overseeing a VPC within an organization are described in this workflow. It's critical to modify this workflow to meet the unique requirements of your company, industry compliance standards, and preferred cloud provider. It is essential to regularly review and optimize your virtual private cloud (VPC) to make sure that security and performance are maintained while it meets your changing needs.
